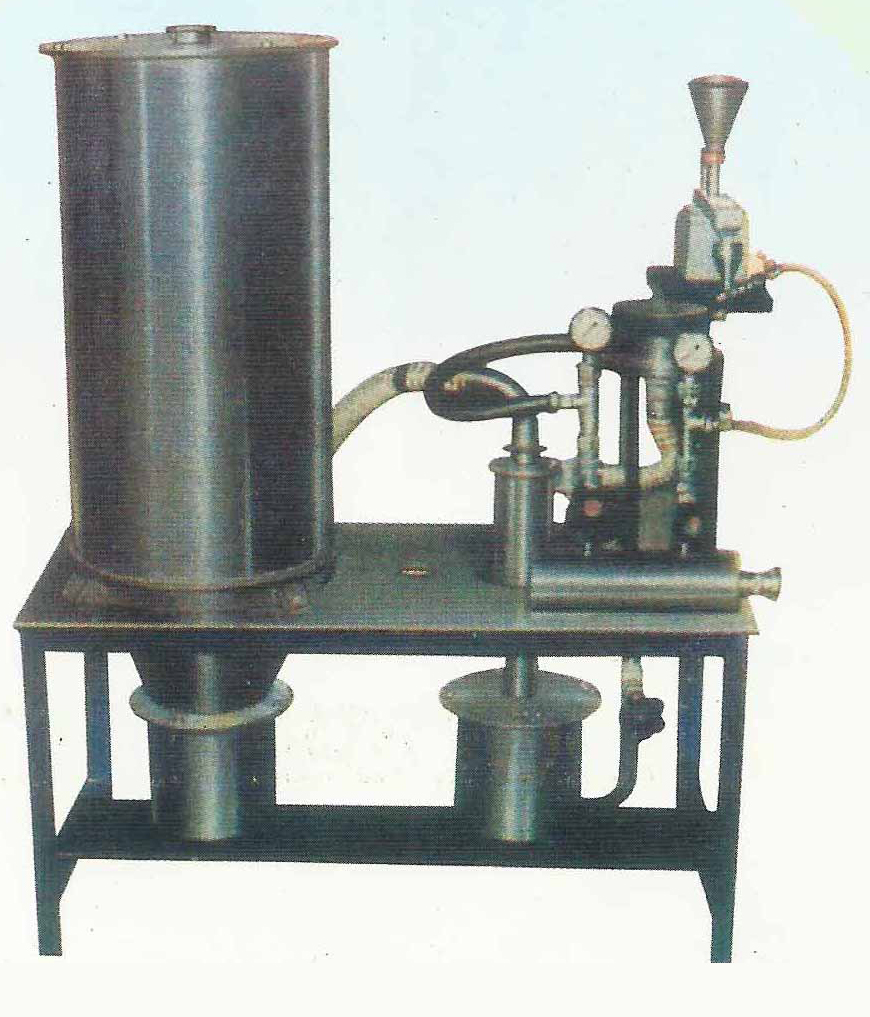

ADS50\100 disc type jet mill

Features:
·dry type brittle material;
·autogenous grinding;
·solve the grinding of stereoplasm and viscosity material
·process production and automatic operation

ADS50\100 disc type jet mill flow diagram

1. air compressor 2. air storage tank 3. air freezing and drying machine 4. ADS series jet mill 5. bunker
6. electromagnetic vibration feeder 7. drip catcher 8. star shape rotary valve 9. sack drip catcher 10. induced draft fan

Appropriate range: chemical, pesticide, light industry, food, pharmaceutical, non-metal ores and cosmetic

ADS50\100 disc type jet mill main technical index

index \model	ADS50	ADS100
air consumption(m³/min)	0.6-0.8	1.1-1.55
production capacity(Kg/h)	0.5-2	2-10
air compressor power(kW)	7.5	13-15
grinding pressure(MPa)	0.6-0.9	0.6-0.9
particle size(um)	micron order and submicron order
